Routes traced from:
| cheetah.anthrochat.net | Chicago, Illinois, USA |
| glider.anthrochat.net | |
| husky.anthrochat.net | Docklands, London, UK |
| lion.anthrochat.net | Orlando, Florida, USA |
| otter.anthrochat.net | Dallas, Texas, USA |
| pholph.anthrochat.net | Richmond, Virginia, USA |
| snowleopard.anthrochat.net | |
| squirrel.anthrochat.net | Germany |
| tixen.anthrochat.net | Toronto, Ontario, Canada |
Showing: hop count / average RTT (ms) From \ to |cheetah |glider |husky |lion |otter |pholph |snowleop|squirrel|tixen ----------+--------+--------+--------+--------+--------+--------+--------+--------+-------- cheetah | | 9/ 55 | 8/ 87 | 9/ 62 |11/ 39 | 9/ 38 | 9/ 18 |13/126 |10/ 15 glider |10/ 55 | | 9/139 |14/101 | 8/ 45 |10/ 86 | 8/ 81 |12/164 |11/ 92 husky | 8/ 86 |14/138 | |14/121 |10/106 | 9/101 | 8/ 72 | 9/ 25 | 7/ 85 lion |12/ 50 |14/122 |11/119 | |10/ 60 |12/ 32 | 9/ 38 |12/135 | 9/ 71 otter |11/ 39 | 9/ 46 | 9/120 |12/ 36 | |11/ 25 |15/ 34 |16/127 |16/ 78 pholph | / | / | / | / | / | | / | / | / snowleop |10/ 18 |12/ 82 | 9/ 72 | 9/ 66 |13/ 34 |10/ 32 | |10/100 | 8/ 30 squirrel |19/125 |16/164 |12/ 25 |12/135 |15/128 |13/126 |10/100 | |10/112 tixen |12/ 15 | 9/ 92 | 9/ 85 | 9/ 56 |14/ 78 |11/ 69 |14/ 29 |10/233 |

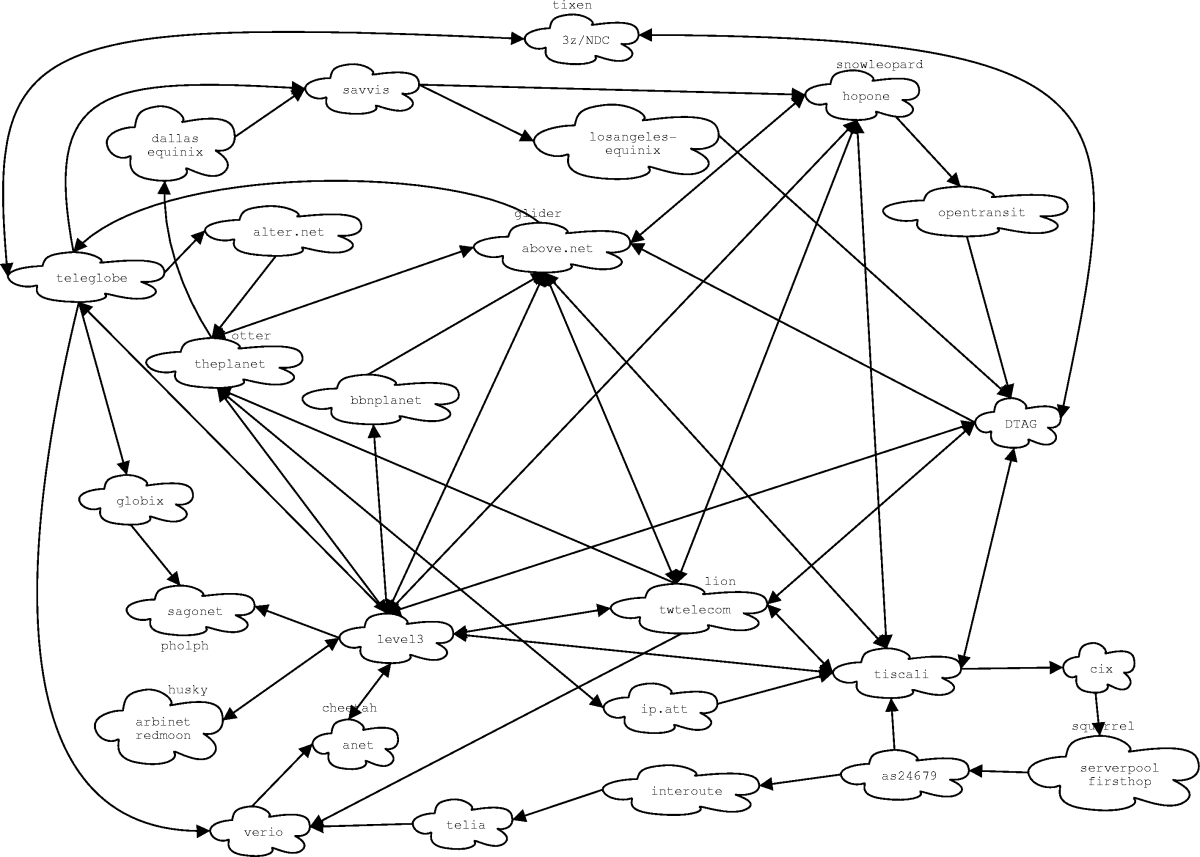

(Dia source for diagram.)
Some possible link-maps, based on assigning costs to each potential link, then building a graph iteratively by choosing at each iteration the lowest-cost link which does not introduce a loop into the graph. I should re-do these keeping some loop-forming links as backup routes.
Using round-trip time between nodes as link cost:
squirrel
|
husky
|
lion -- pholph -- snowleop -- cheetah -- tixen
|
otter
|
glider
Each pair of nodes has two traces connecting them, and in many cases the hopcounts are different. Using the lower hop-count between the two nodes as link cost:
lion squirrel
\ |
cheetah -- husky -- tixen
/ |
pholph snowleopard
|
glider
|
otter
Using the higher hop-count between the two nodes as link cost:
lion -- snowleop -- husky -- cheetah -- pholph
| | |
squirrel tixen glider
|
otter
